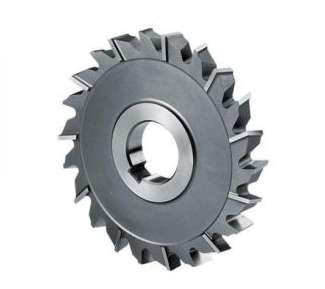

FACE CUTTER

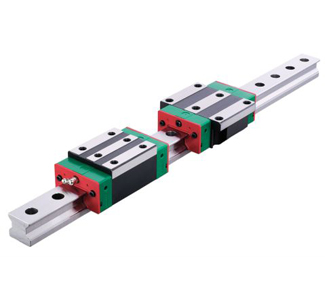

LINER GUIDE & BLOCK

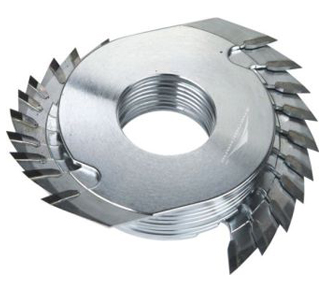

FINGER CUTTER
PNEUMATIC CYLINDER

TECHNICAL SPECIFICATION

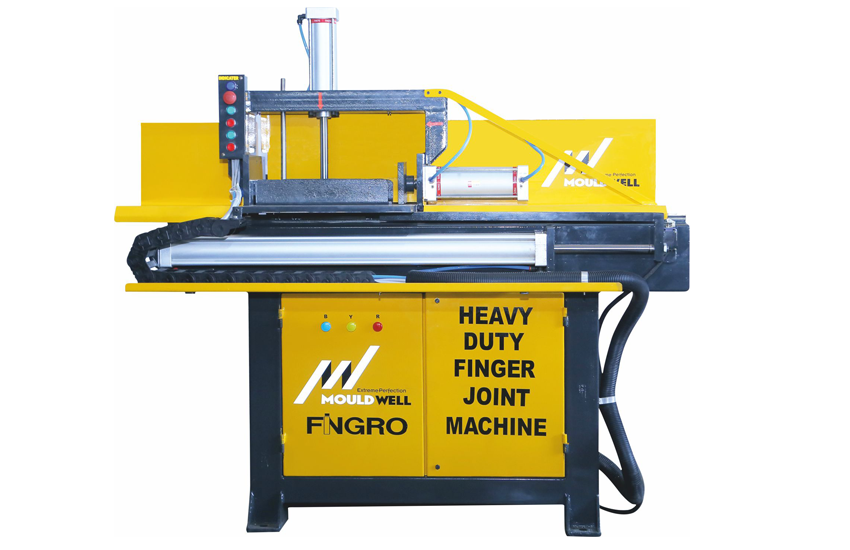

TECHNICAL SPECIFICATION FINGRO
MAX WORKING HEIGHT 150MM
MAX WORKING WIDTH 400MM
SLIDE MOVEMENT LINER GUIDE AND BLOCK
SLIDE TRANSMISSION PNUMATIC CYLINDER
FINGERING SPINDLE MANUAL SLIDE UP-DOWN
SPINDLE MOTOR 7.5 HP (5000 RPM)
FACING MOTOR 2 HP (2800RPM)
SUCTION BLOWER 2 HP (2800 RPM) OPTIONAL
WORK PIECE HOLDING AUTOMATIC PNUMATIC HOLD
WORK PIECE RELEASE AUTOMATIC PNUMATIC RELEASE
WORKING VOLTAGE 3 PHASE 415 V 50 HZ
OPERATING PANEL PUSH BUTTON WITH LED
CABLE GUIDE IGUS GERMAN CABLE CHAIN

Applications :

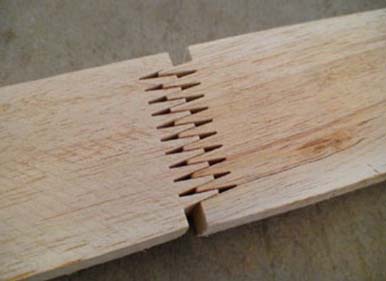

WOOD FINGER JOINT MACHINE
