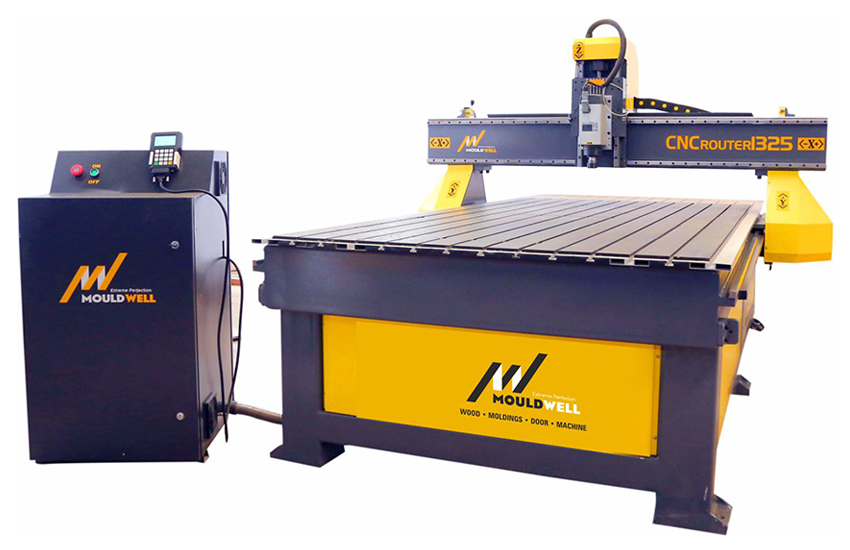

| TECHNICAL SPECIFICATION | RHINO |
|---|---|
| X-Y-Z AXIS MOVEMENT | 1300MM X 2500MM X 200MM |
| REPOSITIONING ACCURACY | (+-0.5MM) |
| X-Y MOVEMENT | HELICAL RACK & PINION |

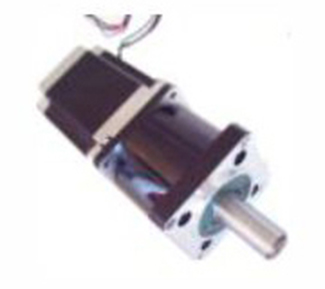

| Y TRANSMISSION | GEAR BOX (BELT LESS) |
| Z MOVEMENT | BALL SCREW WITH COUPLING |
| OVERALL MACHINE DIMENSION | 3100MM X 2100MM x 1700MM |
| MAX IDLING SPEED | 25000 MM/MIN |
| MAX CUTTING SPEED | 15000 MM/MIN |
| WORKING VOLTAGE | 3PHASE 415V 50HZ |
| SPINDLE (AIR /WATER COOLED) | 6HP (4.5KW) 0-24000 RPM |

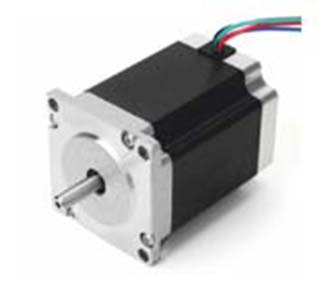

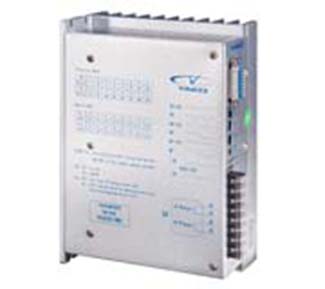

| DRIVE MOTOR | STEPPER SYSTEM (YAKO) |
| COMMAND | G CODE (.tap,.plt,.mmg) |
| COMPUTER INTERFACE | USB |
| CABLE GUIDE | IGUS CABLE CHAIN |

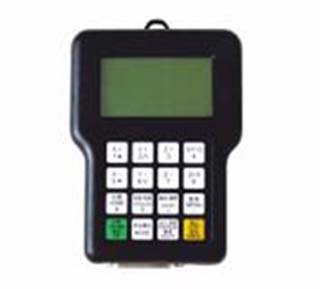

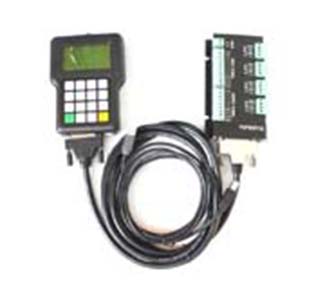

| CONTROLLER | DSP(RICH AUTO A11) |
| COLLET TYPE & SIZE | ER32/25 |
| WORK PIECE HOLDING | MANUAL T SLOT CLAMPING |
| WEIGHT | 1200 KG APPROX |
