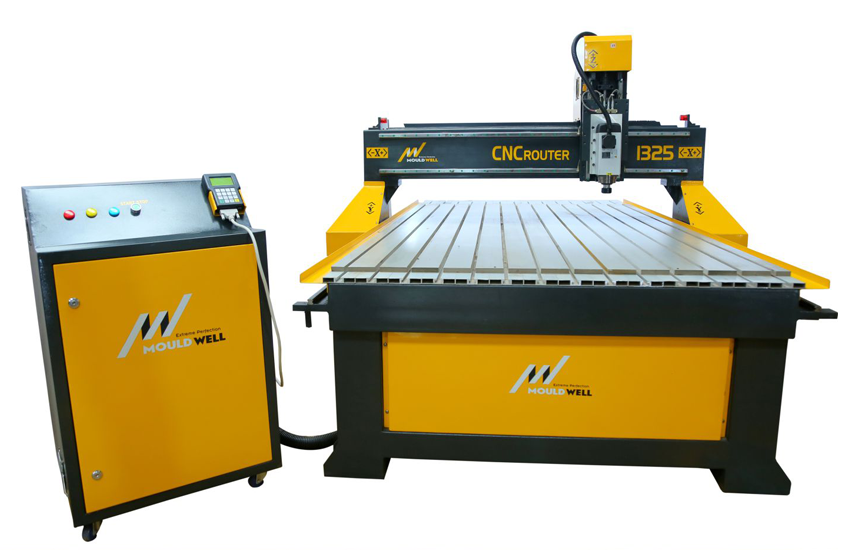

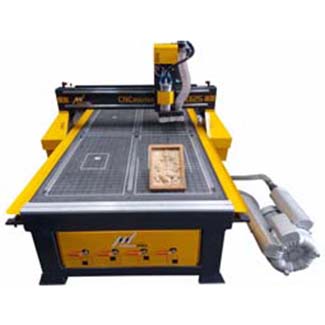

| TECHNICAL SPECIFICATION | LEOPARD |
|---|---|
| X-Y-Z AXIS MOVEMENT | 1300MM X 2500MM X 200MM |
| REPOSITIONING ACCURACY | (+-0.3MM) |

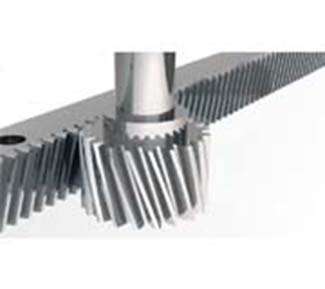

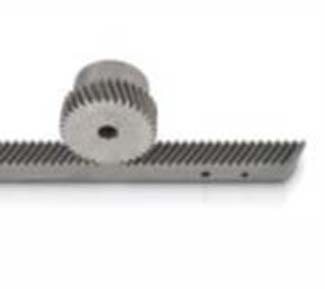

| X-Y MOVEMENT | HELICAL RACK & PINION |
| Y TRANSMISSION | TIMING PULLEY WITH BELT |
| Z MOVEMENT | BALL SCREW WITH COUPLING |
| OVERALL MACHINE DIMENSION | 3100MM X 2100MM x 1700MM |
| MAX IDLING SPEED | 20000 MM/MIN |
| MAX CUTTING SPEED | 15000 MM/MIN |
| WORKING VOLTAGE | 1PHASE 230V 50HZ |

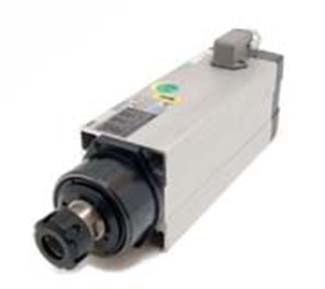

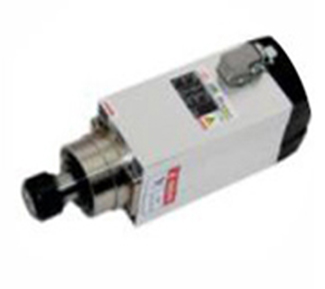

| SPINDLE (AIR /WATER COOLED) | 4.5HP (3KW) 0-24000 RPM |

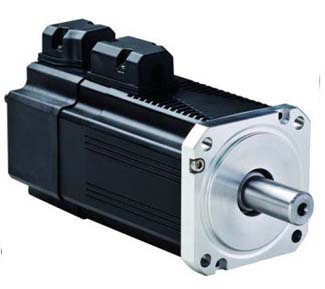

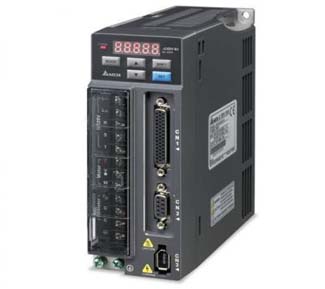

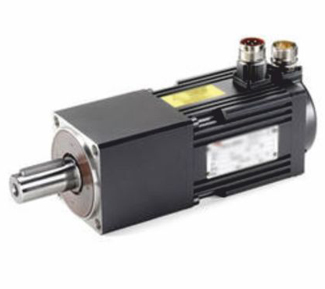

| DRIVE MOTOR | SERVO SYSTEM (750W) |
| COMMAND | G CODE (.tap,.plt,.mmg) |
| COMPUTER INTERFACE | USB |
| CABLE GUIDE | IGUS CABLE CHAIN |

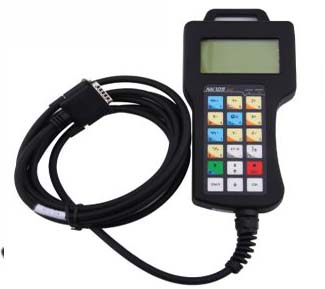

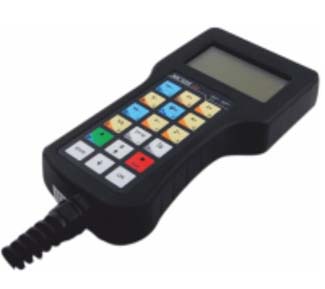

| CONTROLLER | WEIHONG NK105 |
| COLLET TYPE & SIZE | ER32/25 |
| WORK PIECE HOLDING | MANUAL T SLOT CLAMPING |
| WEIGHT | 1000 KG APPROX |
