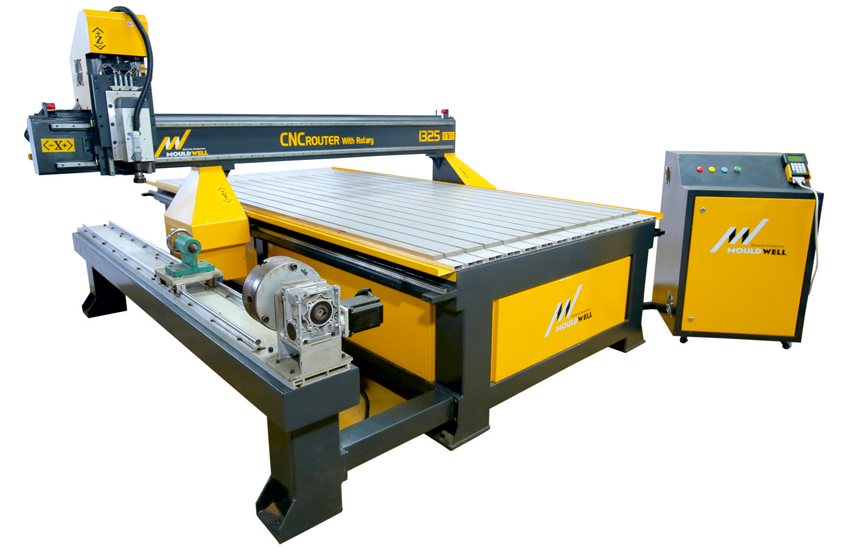

AIR COOLED SPINDLE
(for more durability)
BELT LESS GEAR BOX
(for more accuracy)
DSP CONTROLLER
(for easy access)
HELICAL RACK
(for more speed)

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION ROTOMATT ROTOMATT
X-Y-Z AXIS MOVEMENT 1300MM X 2500MM X 200MM 1300MM X 2500MM X 200MM
ROTARY AXIS 8 INCH X 8 FEET WITH CENTRE POINT 8 INCH X 8 FEET WITH CENTRE POINT
REPOSITIONING ACCURACY (+-0.5MM) (+-0.5MM)
X-Y MOVEMENT HELICAL RACK & PINION HELICAL RACK & PINION
Y TRANSMISSION GEAR BOX (BELT LESS) TIMING PULLEY WITH BELT
ROTARY TRANSMISSION GEAR BOX (BELT LESS 1:20) GEAR BOX (BELT LESS 1:20)
Z MOVEMENT BALL SCREW WITH COUPLING BALL SCREW WITH COUPLING
OVERALL MACHINE DIMENSION 3100MM X 2600MM x 1700MM 3100MM X 2600MM x 1700MM
MAX IDLING SPEED 25000 MM/MIN 15000 MM/MIN
MAX CUTTING SPEED 15000 MM/MIN 10000 MM/MIN
WORKING VOLTAGE 3PHASE 415V 50HZ 1PHASE 230V 50HZ
SPINDLE (AIR /WATER COOLED) 6HP (4.5KW) 0-24000 RPM 4.5HP (3KW) 0-24000 RPM
DRIVE MOTOR STEPPER SYSTEM (YAKO) STEPPER SYSTEM (LEAD SHINE)
COMMAND G CODE (.tap,.plt,.mmg) G CODE (.tap,.plt,.mmg)
COMPUTER INTERFACE USB USB
CABLE GUIDE IGUS CABLE CHAIN IGUS CABLE CHAIN
CONTROLLER DSP(RICH AUTO A11) DSP(RICH AUTO 0501)
COLLET TYPE & SIZE ER32/25 ER25/20
WORK PIECE HOLDING MANUAL T SLOT CLAMPING MANUAL T SLOT CLAMPING
WEIGHT 1400 KG APPROX 1200 KG APPROX

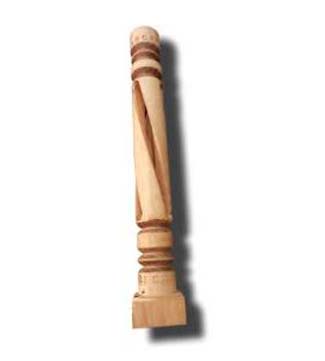

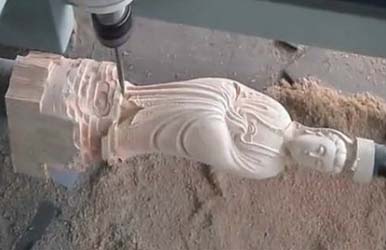

Results :
